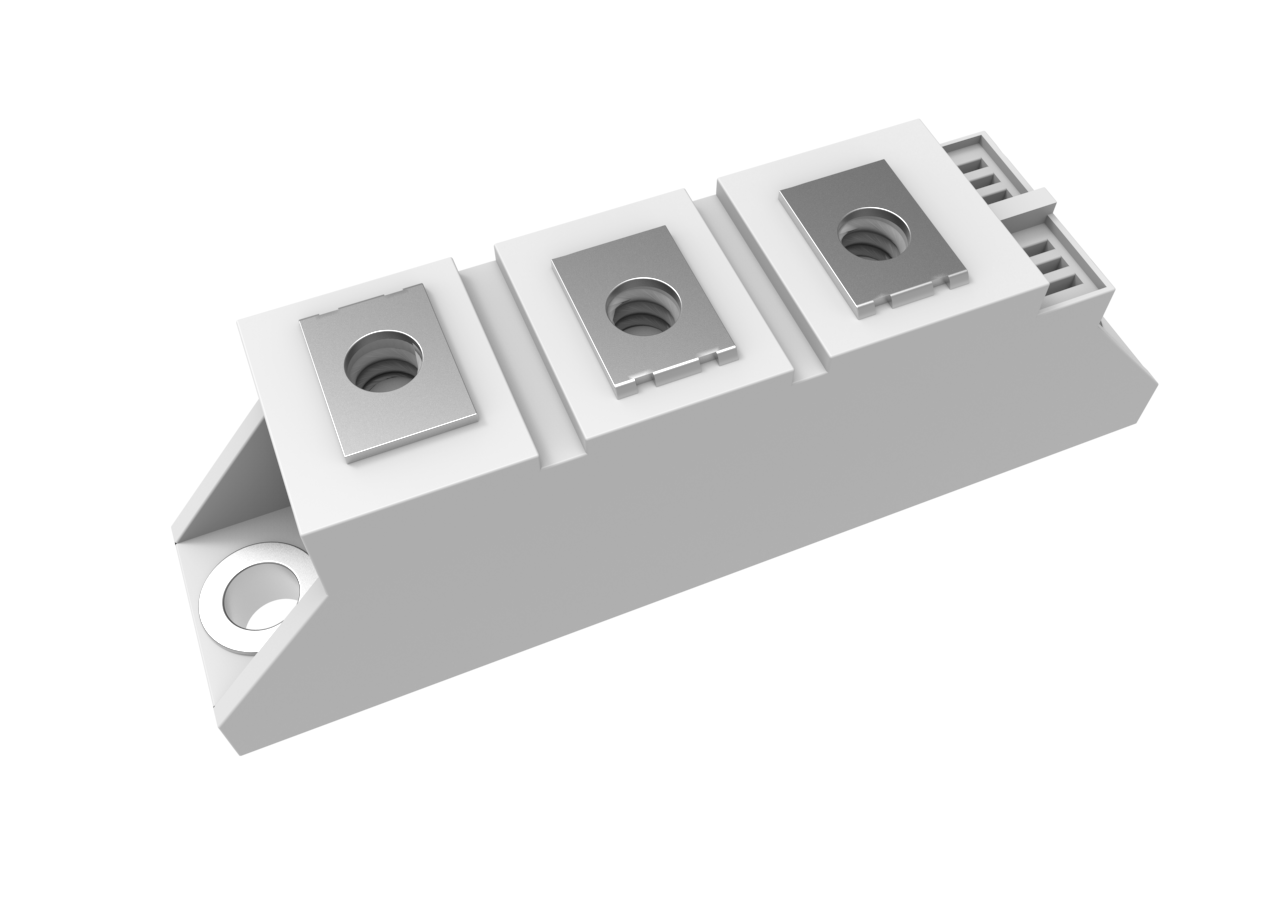

Standard Recovery Power Modules | Status : Active

MD60C16D1

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions VRRM (V) IF(AV)(A)@Tc (°C) IFSM (A) VFM (V) IF(A) IRD (mA) VRD (V) Tc (°C) TVj [max] (°C)
MD60C16D1 Dual 1600 60 1150 1.45 200 5 1600 100 150
Part Number MD60C16D1 Number of Functions Dual VRRM (V)  1600 IF(AV)(A)@Tc (°C)  60 IFSM (A)  1150 VFM (V)  1.45 IF(A)  200 IRD (mA)  5 VRD (V)  1600 Tc (°C)  100 TVj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MD60C16D1 D1 D1 97.0000 MD60C16D1

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
7494.35 15.2
