Small Signal MOSFETS | Status : Active

SI3134KL3A

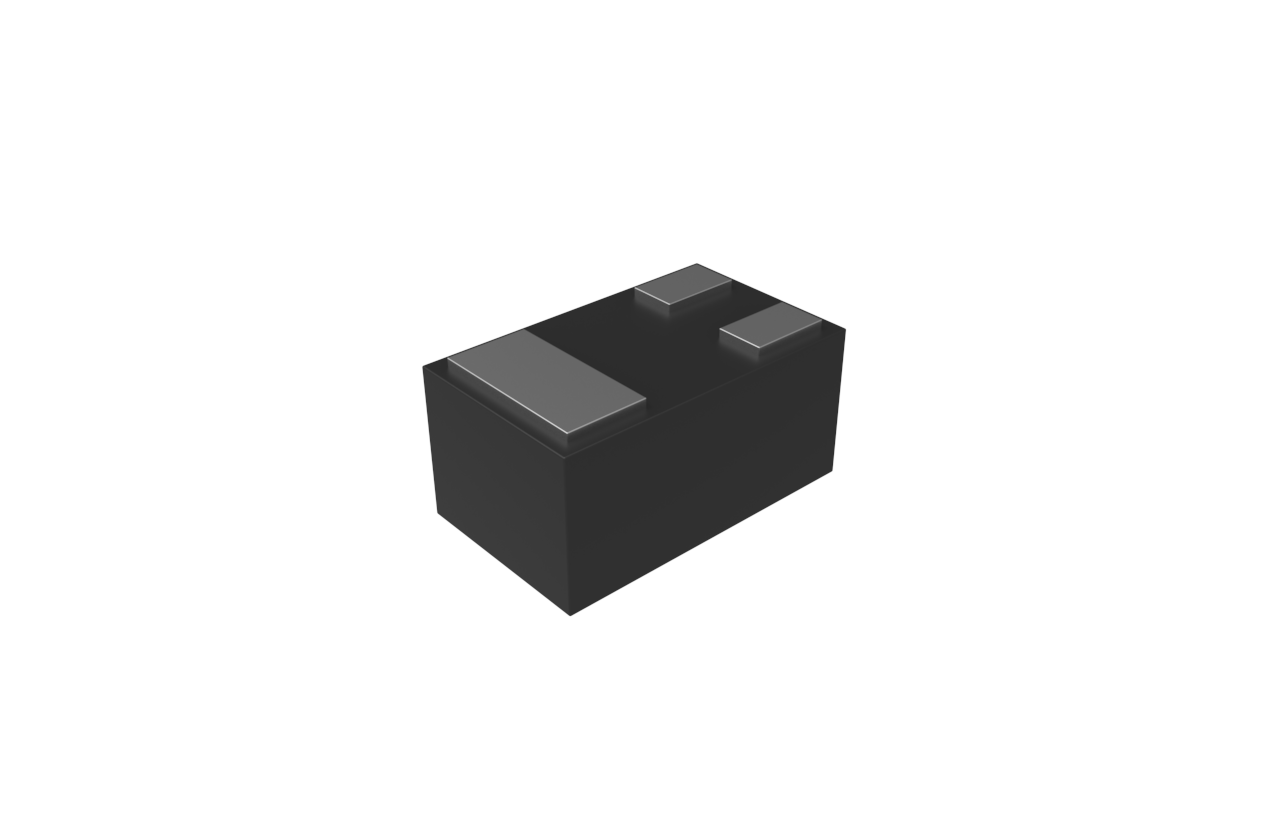

  • Package Type:DFN1006-3
  • Packing Info:Tape&Reel: 10Kpcs/Reel;
  • Category:Small Signal MOSFETS
  • MPN:SI3134KL3A-TP, SI3134KL3A-TPQ3
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 RDS(ON)
Max
@VGS=10V
(Ω)		 RDS(ON)
Max
@VGS=4.5V
(Ω)		 RDS(ON)
Max
@VGS=2.5V
(Ω)		 Gate
Threshold
Voltage
VGS(th) Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
SI3134KL3A Single N 20 ±12 0.75 0.3 0.35 0.35 1.1 Yes 150 27 9.4 0.66 1 0.23
Part Number SI3134KL3A Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)  20 		Gate-Source
Voltage
VGS (V)  ±12 		Drain
Current
ID (A)  0.75 		RDS(ON)
Max
@VGS=10V
(Ω)   		RDS(ON)
Max
@VGS=4.5V
(Ω)  0.3 		RDS(ON)
Max
@VGS=2.5V
(Ω)  0.35 		Gate
Threshold
Voltage
VGS(th) Min
(V)  0.35 		Gate
Threshold
Voltage
VGS(th) Max
(V)  1.1 		ESD
Diodes  Yes 		Junction
Temperature
Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SI3134KL3A DFN1006-3 DFN1006-3 0.0008 4A Tape&Reel: 10Kpcs/Reel;

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free MTBF FIT
Halogen Free 9992.46 11.4
