Schottky Barrier Rectifiers | Status : Obsoleted

MBRB2030CT

Last Time Ship Date:03-01-2024 EOL Notice

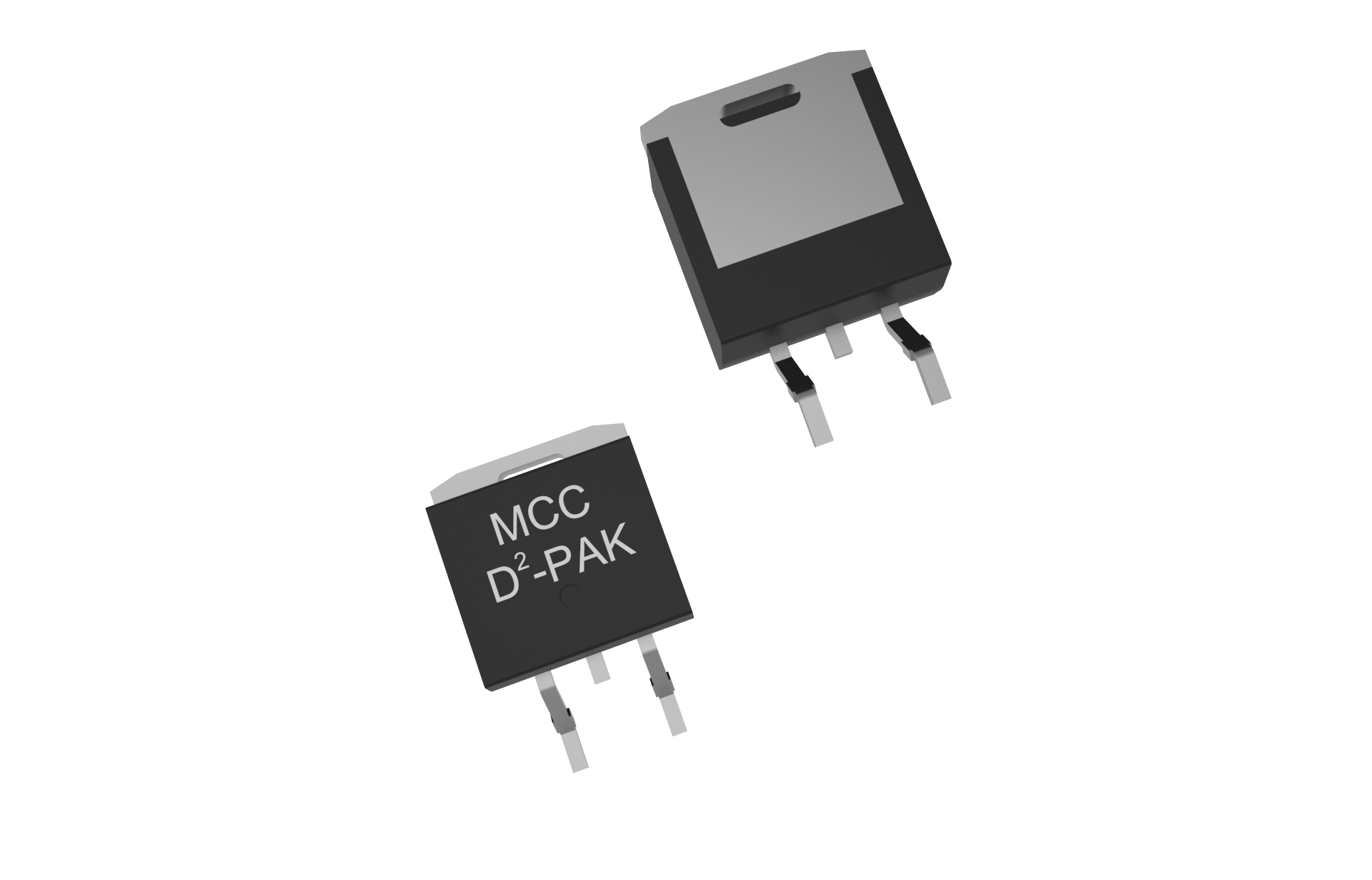

  • Package Type:D2-PAK
  • Packing Info:Tube: 50pcs/Tube, 5K/Ctn,Tape : 800pcs/Reel , 8K/Ctn.; Tube: 50pcs/Tube, 5K/Ctn,Tape : 800pcs/Reel , 8K/Ctn.;
  • Category:Schottky Barrier Rectifiers
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Configuration IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
MBRB2030CT Dual Common Cathode 20 30 0.7 100 150 30 10 150
Part Number MBRB2030CT Number of Functions Dual Configuration Common Cathode IF(AV)(A)  20 VRWM (V)  30 VF
(V) [max]@IF(A)  0.7 		IR (uA)  [max] @
VR  100 		IFSM (A)  150 VR (V)  30 IF(A)  10 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MBRB2030CT D2-PAK D2-PAK 1.4040 MBRB2030CT Tube: 50pcs/Tube, 5K/Ctn,Tape : 800pcs/Reel , 8K/Ctn.;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free MTBF FIT
Halogen Free 17486.81 6.5

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
